Learning how to install garage door weather stripping is one of the smartest ways homeowners can improve energy efficiency, protect their garage from the elements, and boost overall comfort in the home. Proper installation of weather stripping ensures your garage stays dry, reduces drafts, and keeps out unwanted critters. It’s a manageable DIY project with the right tools and a bit of time.
In this guide, you’ll learn:
- What garage door weather stripping is and why it matters
- The different types of weather stripping available
- A step-by-step process for proper installation
Whether you’re dealing with cold winters or hot summers, garage door weather stripping is an effective way to save on utility bills and increase the lifespan of your garage door system.
🤔 Understanding Garage Door Weather Stripping
What Is Weather Stripping?
Garage door weather stripping refers to the materials applied around the edges of a garage door to seal the gaps where air, moisture, and debris can enter. These materials are often made of rubber, vinyl, or silicone and serve to insulate the garage while offering protection from pests and precipitation.
Benefits of Weather Stripping
Adding or replacing garage door weather stripping comes with several practical advantages:
- Helps control temperature and reduce energy consumption
- Blocks water, snow, and debris from entering the garage
- Deters pests like rodents and insects
- Minimizes outside noise infiltration
- Improves door alignment and closing seal
Common Types of Weather Stripping
Homeowners can choose from a few popular styles, each suited to different parts of the garage door:
- Bottom seal: Attaches to the lower edge of the door and compresses against the floor
- Side and top seal: Installed on the door frame to block air from entering around the sides and top
- Threshold seal: Mounted on the floor for extra protection, often paired with a bottom seal
🛠️ Tools and Materials You’ll Need
Basic Tools
Before starting the installation, it’s important to gather the right tools for the job:
- Measuring tape
- Utility knife or scissors
- Power drill or screwdriver
- Hammer and nails or screws
- Caulking gun (optional for added insulation)
Materials Checklist
You’ll also need the correct materials:
- New weather stripping (bottom, side, or top depending on needs)
- Galvanized nails or screws
- Replacement threshold seal (optional)
- Adhesive for specific weather stripping types
📋 Preparation Before Installation

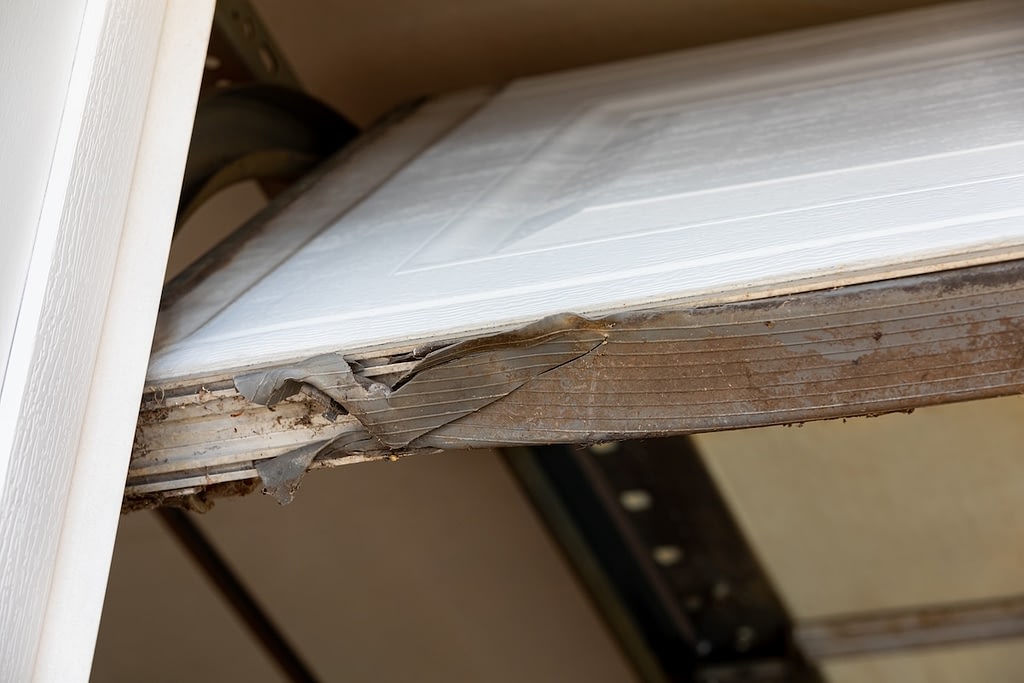

- Inspect the Existing Weather Stripping: Begin by inspecting your current garage door weather stripping for cracks, missing sections, or general wear. If you see daylight coming in from the edges or feel drafts, it’s time to replace the stripping.
- Measure Carefully: Use a measuring tape to determine the length of the door’s bottom, sides, and top. Always purchase a bit more material than you think you’ll need to account for trimming and errors.
- Clean the Surface: Clean all areas where new weather stripping will be applied. Remove dirt, grease, and any remnants of the old weather stripping so the new material adheres correctly.
✅ How To Install Garage Door Weather Stripping: Step-by-Step Guide
1. Remove the Old Weather Stripping
- Use a utility knife to slice through the old material
- Carefully pull it away from the door or frame
- Remove old nails or screws
- Clean off adhesive residue
2. Cut the New Weather Stripping
- Measure the length needed for each edge
- Cut the new weather stripping using heavy-duty scissors or a knife
- Lay the strips flat to ensure they aren’t twisted
3. Install Bottom Weather Seal
- Slide or press the seal into the track under the garage door
- Use nails or screws to secure if needed
- Check for a tight, even fit across the bottom
4. Apply Side and Top Seals
- Start on one side of the frame and move to the top and other side
- Line up the weather stripping against the frame so the rubber lightly presses against the closed door
- Secure with nails or screws spaced about every 8 to 10 inches
5. Add Threshold Seal (Optional)
- Clean the garage floor thoroughly
- Lay out the threshold and cut to size
- Apply adhesive and press the seal into place
- Allow adhesive to cure based on product instructions
⭐️ Tips for a Smooth Installation
- Check Door Alignment: Weather stripping works best when your garage door is aligned properly. If your door is crooked or sagging, weather stripping may not seal effectively.
- Don’t Over-Tighten Fasteners: When securing the weather stripping, be careful not to over-tighten nails or screws. This can compress the material too much, reducing its effectiveness.
Test the Door Operation: Once the installation is complete, open and close the door several times. Make sure it moves smoothly and the seals remain in place.
❌ Common Mistakes to Avoid
- Using the Wrong Type of Weather Stripping: Not all garage doors are the same. Be sure to buy weather stripping designed for your specific model, material, and size.
- Skipping Surface Prep: Failing to clean the surface beforehand can lead to poor adhesion or uneven application. Always wipe down the area thoroughly before installing.
- Installing in Extreme Temperatures: Weather stripping becomes stiff in cold temperatures and may stretch in the heat. Aim to install it on a mild, dry day for best results.
👉 How to Replace Garage Door Weather Stripping
This section breaks down the process of replacing weather stripping on a typical overhead garage door.
Step-by-Step Instructions:
- Unplug the automatic garage door opener and ensure the door is in manual operation mode.
- Raise the door halfway and secure it with clamps or locking pliers to prevent movement.
- Use a screwdriver or pry bar to remove old nails or screws from the side and top weather stripping.
- Clean the surface with mild soap and water, removing debris and leftover sealant.
- Measure each section (bottom, sides, top) and cut new strips to match those lengths.
- Align the new stripping starting from one end, keeping the flexible portion lightly pressed against the door.
- Secure the stripping with nails or screws, spacing them evenly. Do not overtighten.
- Repeat the process for each edge of the door, ensuring no gaps are visible.
- Lower the door slowly and check the seal. Adjust as needed to ensure full contact all around.
- Reconnect your opener and test the door for smooth operation.
