How to align garage door sensors is a question many homeowners face when their garage door stops working correctly. These small but essential safety devices play a crucial role in making sure your door operates smoothly and safely. Misaligned sensors can prevent your garage door from closing properly or cause it to reverse unexpectedly.
In this guide, we’ll walk you through everything you need to know to get your garage door sensors back on track. Here’s what you’ll learn:
- What causes garage door sensors to become misaligned
- Tools and materials you’ll need before you begin
- Step-by-step instructions for a successful alignment
Let’s get into the details of how to realign your garage door sensors and restore smooth functionality to your system.
🤔 Understanding Garage Door Sensors
What Garage Door Sensors Do

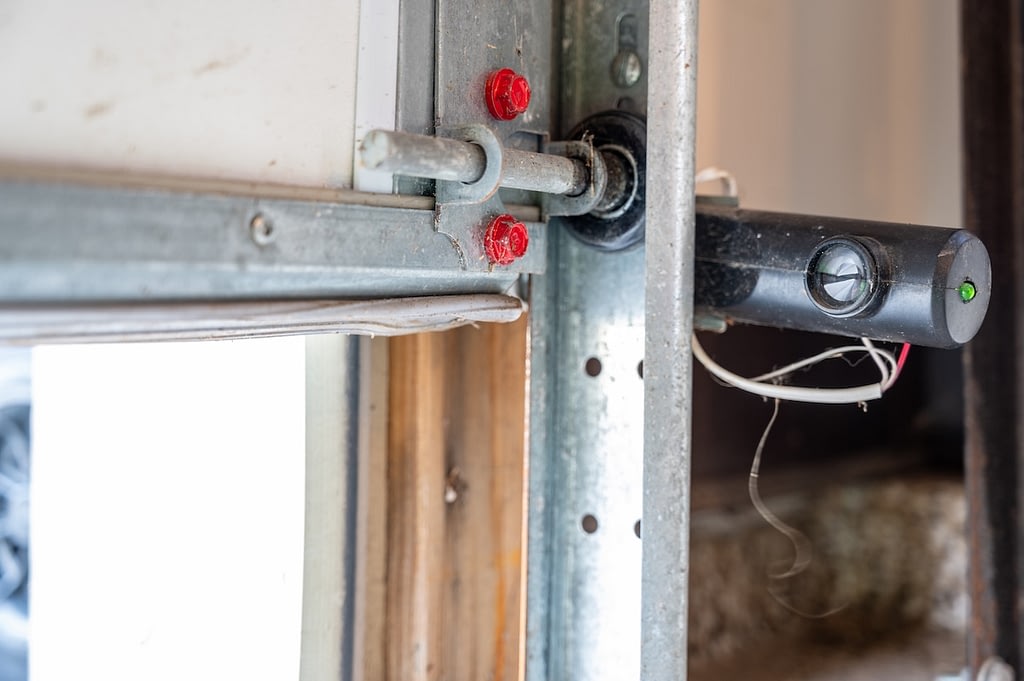

Garage door sensors are safety devices typically located near the base of your garage door tracks on either side. These sensors emit an invisible beam across the bottom of the garage door opening. If anything interrupts this beam, the sensors signal the garage door opener to stop or reverse the closing door. This prevents accidents and injury.
Signs Your Sensors Are Misaligned
When your sensors are no longer aligned, the door may act erratically. Look out for these common symptoms:
- Garage door starts to close but then reverses
- Blinking lights on one or both sensor units
- Door won’t close unless you hold the wall switch
- Intermittent operation or inconsistent behavior
Understanding these warning signs can help you quickly determine that sensor alignment is the likely culprit.
🛠️ Preparing for the Alignment Process
Tools and Materials You’ll Need
Before beginning, make sure you have the following items on hand:
- A soft cloth
- A screwdriver (typically Phillips head)
- String or a long piece of twine
- A level
- Tape measure
Having everything ready beforehand will make the process much easier and more efficient.
Safety First
Unplug your garage door opener or turn off the power at the breaker box. This precaution prevents the door from accidentally activating while you’re working near it.
✅ Step-by-Step Guide: How to Align Garage Door Sensors
1. Inspect the Sensors
- Locate the sensors on both sides of the garage door track.
- Make sure they’re mounted at the same height. Use a tape measure if necessary.
- Check that the brackets aren’t loose or damaged.
- Look for any visible dirt or debris on the lens of each sensor.
- Wipe the sensor lenses with a soft cloth to remove any grime that could interfere with the signal.
2. Check for Obstructions
- Make sure nothing is blocking the line of sight between the two sensors.
- Remove any boxes, tools, or debris that may have shifted into their path.
- Pay attention to cobwebs or even insects, which can also interfere with the beam.
3. Loosen the Sensor Brackets
- Using your screwdriver, gently loosen the mounting screws holding each sensor.
- Don’t remove the brackets completely; just loosen them enough so the sensors can be moved by hand.
- This step allows you to make fine adjustments more easily.
4. Align the Sensors
- Tie a string between the sensors at their centers.
- Use a level against the string to ensure it is perfectly horizontal.
- Adjust each sensor up or down slightly to match the level line.
- Once aligned, tighten the screws on the brackets to lock the sensors in place.
- Remove the string and verify that both sensors face each other directly.
5. Test the Alignment
- Plug the garage door opener back in or restore power.
- Try closing the garage door using the remote or wall button.
- If the door closes smoothly without reversing, your alignment was successful.
- If it still acts up, double-check the alignment and look for blinking sensor lights.
❗️ Troubleshooting Common Issues
Blinking Lights on the Sensor
Most sensor models use blinking lights to indicate a problem. A blinking green or amber light usually means one of the sensors is misaligned or has a poor connection. Recheck the alignment and ensure all wiring is firmly attached.
Intermittent Door Function
If your garage door works sometimes but not consistently, it may be due to vibrations or loose brackets. Try:
- Reinforcing the sensor brackets with additional screws
- Placing foam pads behind the sensors to absorb vibration
- Checking the power connections and wires for damage
Sensors Work Only During Daylight
This uncommon issue can sometimes be caused by direct sunlight interfering with the sensor beam. To fix it:
- Adjust the angle of the sensors slightly
- Use a piece of cardboard to create a small shade for each unit
- Re-align with the shaded beam path in mind
📞 When to Call a Professional
DIY Limitations
If you’ve gone through the steps above and your garage door still isn’t working properly, it may be time to get professional help. Some issues go beyond sensor alignment and could involve:
- Wiring problems within the garage door opener
- Damaged circuit boards or faulty logic controls
- Warped tracks or damaged brackets
Avoiding Bigger Problems
Trying to force or override your garage system could lead to more costly repairs later. That’s why knowing when to stop and call in an expert is a smart move for any homeowner.
